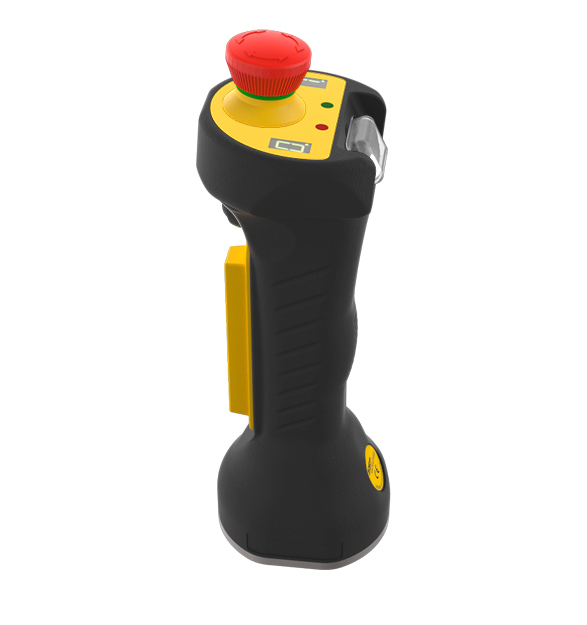

ZEUS 32 Function control including diagnostics

2.00 kr

Rensa

Produktinformation

Protection class
IP65 and IP67
Approvals
Tüv, CE
Supply voltage
DC +/- 5% 24 V

Beskrivning

The ZEUS enabling/operational unit can be integrated easily into your system thanks to the universal connection via a plug, cable or terminal.

Läs mer

The ZEUS enabling/operational unit can be integrated easily into your system thanks to the universal connection via a plug, cable or terminal.

Dokument

Teknisk data

Approvals
TÜV, CE
Supply voltage
24V DC ± 5% V
Standards
EMV: DIN EN 55011:2009 + A1:2010, DIN EN 61000-4-3:2006 + A1:2008 + A2:2010, DIN EN 61000-4-6:2009
B10d-value
100.000
Environmental conditions
Max. storage temperature
-40... +80 °C
Max. operating temperature
-5 ...+60 °C
Protection class
IP65, IP67
Clearance and creepage distances according to IEC/EN 606641
Overvoltage category: 3 // Contamination level: III
Enabling button material
Silicon
Base plate
with mounting bracket: only for use with the ZEUS H (SP-X-85-800-00) // screw connections: M20 internal thread
Length
71 mm
Width
69 mm
Height
186 mm
Weight
depending on features and variant 330-400 g
Housing material
PA6.6 30% GF, colour: black
Material for base plate
V2A
Mechanical service life
100,000 switching cycles
Screw torque
0,8 Nm

Modeller

Model Article numberSensor functionConnectionBaseplate
ZEUS 11-15 00 01SP-X-85-903-73 NonTerminal connectionWithout mounting bracket
ZEUS 11-15 0C01SP-X-85-904-91 NonM23 plug 12-pinWithout mounting bracket
ZEUS 11-15 04 01SP-X-85-901-58 NonConnecting cable 5mWithout mounting bracket
ZEUS 11-15 05 01SP-X-85-901-09 NonConnecting cable 10mWithout mounting bracket
ZEUS 11-15 10 01SP-X-85-900-94 NonTerminal connectionWith mounting bracket
ZEUS 11-15 1C01SP-X-85-902-39 NonM23 plug 12-pinWith mounting bracket
ZEUS 11-15 14 01SP-X-85-900-95 NonConnecting cable 5mWith mounting bracket
ZEUS 11-15 15 01SP-X-85-900-93 NonConnecting cable 10mWith mounting bracket
ZEUS 11-15 10 11SP-X-85-904-27 Activity-SensorTerminal connectionWith mounting bracket
ZEUS 11-15 14 11SP-X-85-900-67 Activity-SensorConnecting cable 5mWith mounting bracket
ZEUS 11-15 15 11By requestActivity-SensorConnecting cable 10mWith mounting bracket
ZEUS 11-15 00 21By requestIn-hand sensorTerminal connectionWithout mounting bracket
ZEUS 11-15 04 21SP-X-85-903-31 In-hand sensorConnecting cable 5mWithout mounting bracket
ZEUS 11-15 05 21By requestIn-hand sensorConnecting cable 10mWithout mounting bracket
ZEUS 11-15 10 21By requestIn-hand sensorTerminal connectionWith mounting bracket
ZEUS 11-15 14 21SP-X-85-902-89 In-hand sensorConnecting cable 5mWith mounting bracket
ZEUS 11-15 15 21SP-X-85-906-10 In-hand sensorConnecting cable 10mWith mounting bracket
ZEUS 11-15 10 31SP-X-85-900-57 In-hand and activity sensorTerminal connectionWith mounting bracket
ZEUS 11-15 14 31SP-X-85-900-59 In-hand and activity sensorConnecting cable 5mWith mounting bracket
ZEUS 11-15 15 31SP-X-85-900-51 In-hand and activity sensorConnecting cable 10mWith mounting bracket
